• External Battery Connection Cable
    • External Battery Connection Cable

    External Battery Connection Cable

    ₱6,980.00
    ₱6,980.00 ₱6,980.00

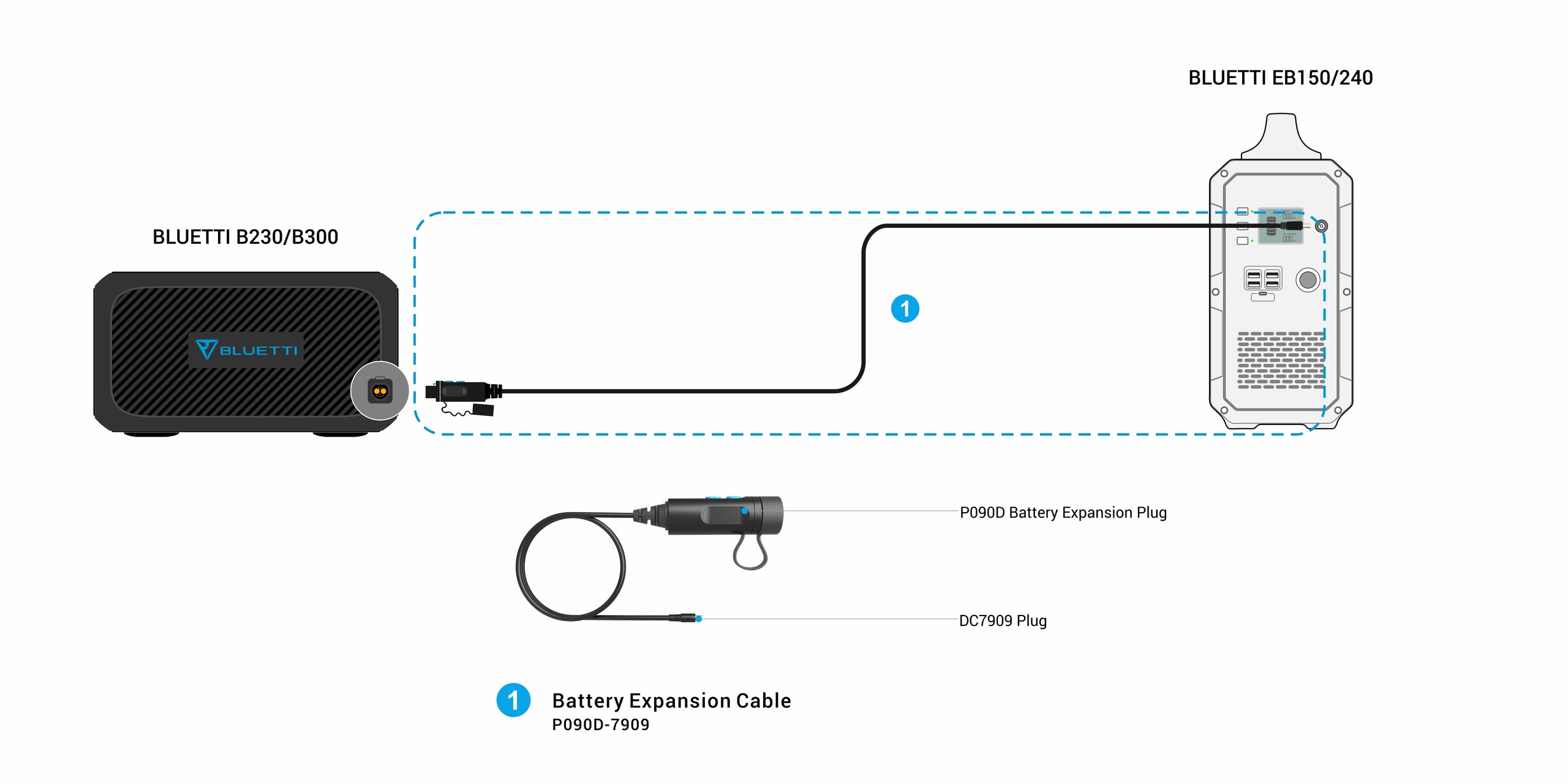

    P090D To DC7909
    Applicable Models: EB150/EB240

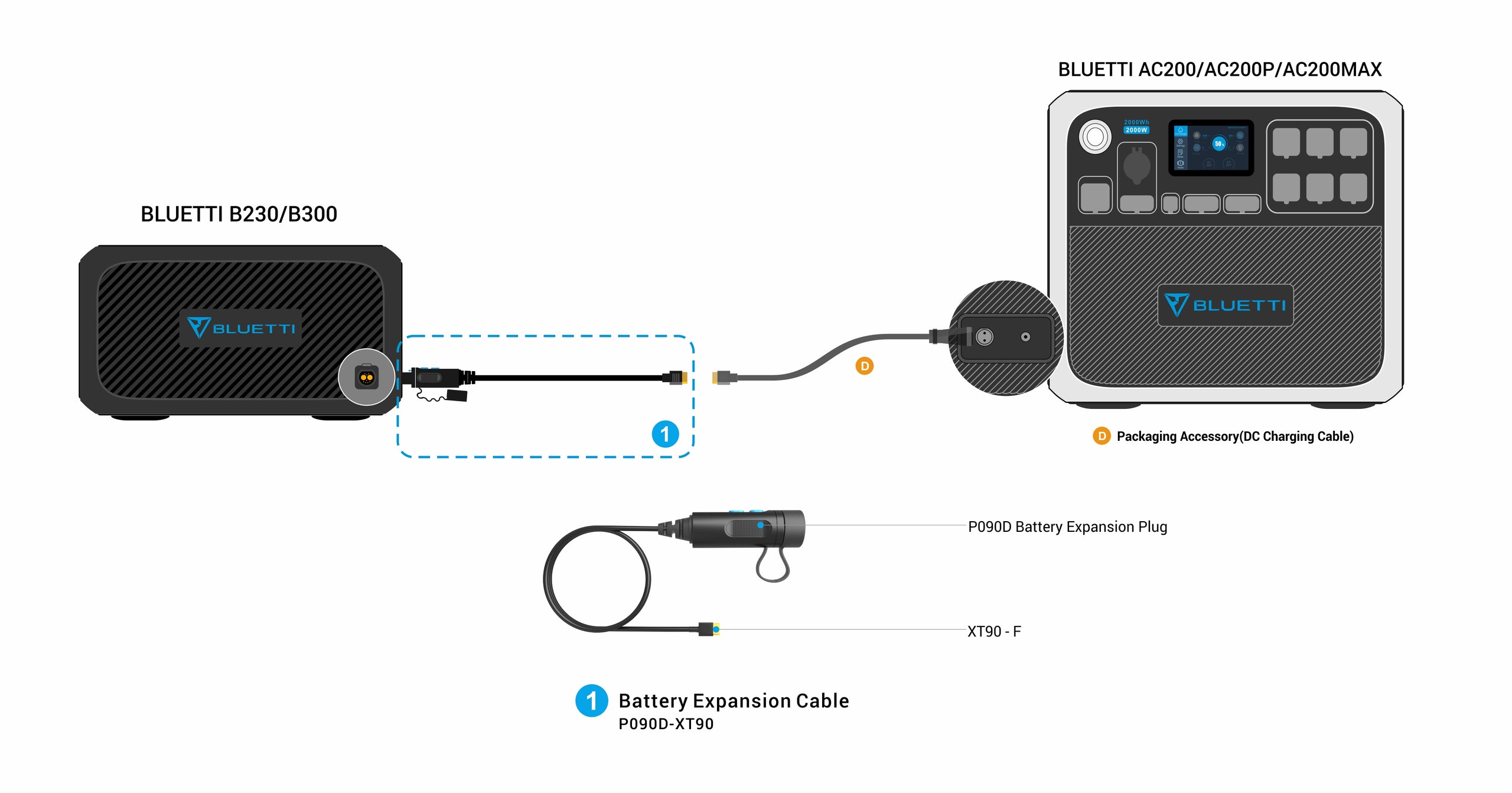

    P090D To XT90
    Applicable Models: AC200/AC200P

    P090D To MC4
    Applicable Models: EP500 Pro

    Application: By using this cable, you can connect the B230/B300 external battery packs to your current Bluetti power stations.

    Note: To enable the stand alone power output at the P090D port (power bank mode) of B230/B300, press and hold the power button for about 10 seconds till the indicator flashes.


    Product:


    Free
    Local Shipping

    1-year Hassle Free
    Warranty

    Lifetime Customer
    Support

    Never Run Out of Power

    Suitable for various occasions

    Other Top Rated Products

    Specifications


    BATTERY INFO


    Capacity:
    3,072Wh (51.2V, 60Ah)

    Type:
    LiFePO4 (Lithium Iron Phosphate)

    Life Cycles:
    3500+ Cycles to 80% Original Capacity

    Shelf-life:
    Recharge to 80% Every 3-6 Months

    Management System:
    MPPT Controller, BMS, etc.

    OUTPUT


    USB-C Port:
    1 x 100W Max.

    USB-A Port:
    1 x 18W USB-A

    12V DC Outlet*:
    1 x 12V/10A (Car Outlet)
    *All Regulated.

    INPUT


    AC Input:
    500W Max.

    Solar Input:
    200W Max., VOC 12-60VDC, 10A

    Car Input:
    12/24V from Cigarette Lighter Port

    Max Input:
    700W, With AC Adatper + Solar Input Simultaneously

    RECHARGE TIME


    AC:
    ≈ 6.5~7 Hours at 500W

    Solar:
    ≈ 15.5~16 Hours at 200W
    (With prime sunshine, ideal orientation and low temperature)

    12V/24V Car Outlet (100W/200W:
    ≈ 30 or 15 Hours

    AC + Solar:
    ≈ 5 Hours at 700W
    (With prime sunshine, ideal orientation and low temperature)

    Solar + Solar:
    ≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED)

    Dual AC:
    ≈ 5 Hours at 700W (Extra adapter REQUIRED)

    GENERAL


    240V Split Phase Bonding:
    Yes, work with AC300

    Pass-through Charge:
    Yes

    Weight:
    79.6lbs (36.1kg)

    Dimensions (LxWxD):
    20.5 x 12.5 x 10.5in ( 52 x 32 x 26.6cm)

    Operating Temperature:
    -4-104℉ (-20-40℃)

    Storage Temperature:
    -4-104℉ (-20-40℃)

    Certifications:
    UL Standard, CEC, DOE, FCC, CA Prop 65

    Warranty:
    48 Months (Enter to learn more about BLUETTI warranty policy)


    Optional Accessories

    BLUETTI PV120/PV200/PV350 (Solar Panel)

    Learn more >

    D050S (DC Charging Enhancer)

    Learn more >

    T500 Adapter (AC Input)

    Learn more >
